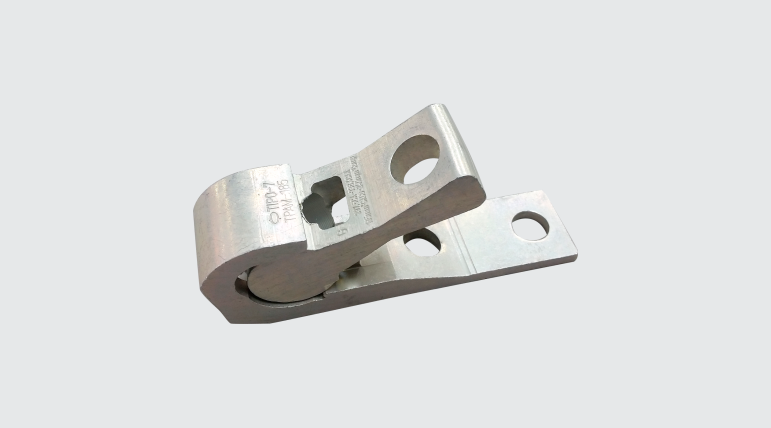

TPAM - Pressure Terminal with Spring Effect

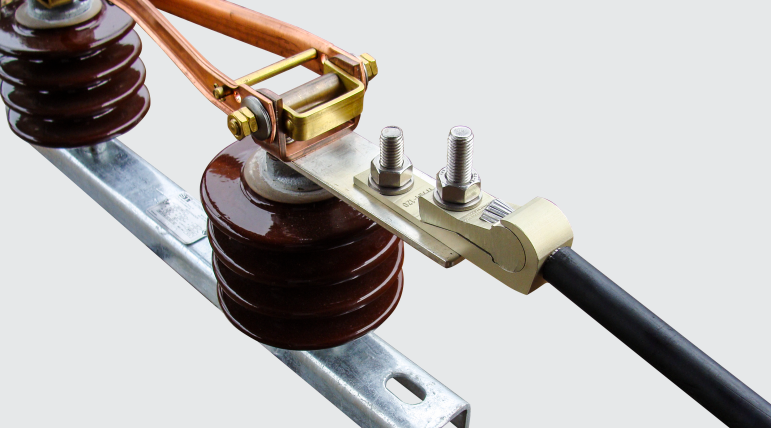

Purpose: Cable to busbar termination for aluminum AC or ACSR and copper cables. Knife switch termination and transformer bushing.
Characteristics: Spring system connection (permanent tightening). High electrical conductivity and corrosion resistance. Pad with two or four holes NEMA* standard. Reusable.
Application: Power distribution lines.
Material: Aluminum alloy with corrosion inhibiting surface treatment. Supplied with antioxide compound INTELTROX.
Application Tool: Star or open-ended wrench.
Note: It may be supplied with or without fittings (stainless steel bolts, nuts and washers).
Technical Chart
Technical specifications of our products
| INTELLI Code | Diameter Range (mm) | Combinations (mm² / AWG) | Datasheet | ||
|---|---|---|---|---|---|
| Smaller Side (P) | Larger Side (G) | Smaller Side (P) | Larger Side (G) | ||
| TPAM-50 | 6,7 - 7,3 | 7,31 - 8,1 | 35 CA/Cu Comp. | 2 CA/Cu/CAA | 35 CA/Cu | 50 CA/Cu Comp. | View |
| TPAM-70 | 9 - 9,7 | 10 - 10,6 | 1/0 CA/Cu | 50 CA/Cu/CAL | 70 CA/Cu Comp. | 2/0 CA/Cu | 1/0 CAA 70 | CA/Cu/CAL | View |
| TPAM-120 | 11,2 - 12,3 | 12,7 - 13,3 | 3/0 CA/Cu | 2/0 CAA 95 CA/Cu | 95 CA/Cu Comp. | 4/0 CA/Cu | 3/0 CAA | 120 CA/Cu Comp. | View |
| TPAM-150 | 14,2 - 14,4 | 14,5 - 15,1 | 4/0 CAA | 150 CA Comp. | 266,8 CA/Cu | 120 CA/Cu | View |
| TPAM-185 | 15,45 - 17 | 17,3 - 18,9 | 266,8 CAA | 336,4 CA/Cu | 150 CA/Cu | 185 CA/Cu Comp. | 397,5 CA/Cu | 336,4 CAA | 185 CA/Cu | 240 CA/Cu Comp. | View |
| TPAM-300 | 20 - 20 | 21,7 - 22,5 | 477 CA/Cu | 397,5 CAA | 240 CA/Cu | 300CA/Cu Comp. | 556,5 CA/Cu | 477 CAA | 300 CA/Cu | 350 CA/Cu Comp. | View |
