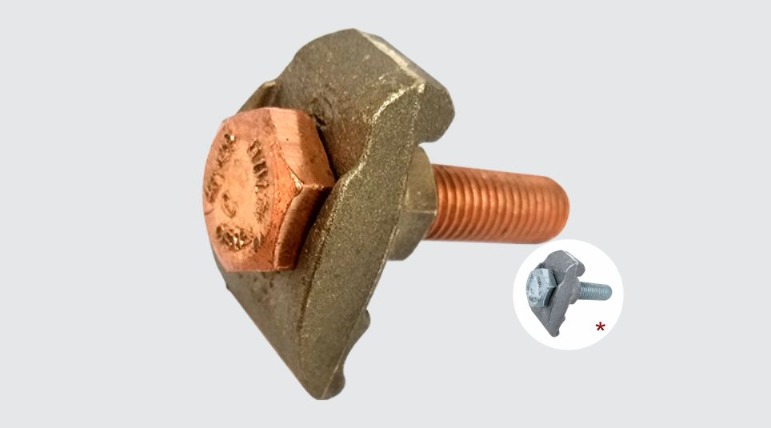

GTSB - Grounding Clamp (1 conductor)

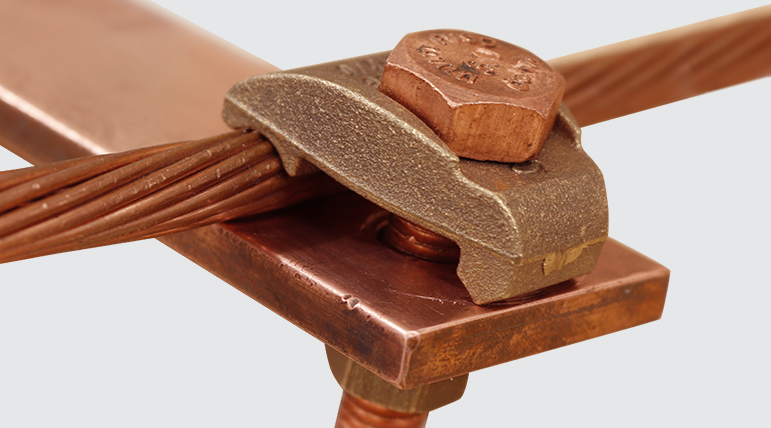

Purpose: Cable to busbar connections. Suitable for copper or COPPERSTEEL cables.

Characteristics: Tightening connection. Electrical conductivity and corrosion resistant. Single conductor version. Screw length suitable for plate / bar thickness up to 7mm.

Application: Grounding systems in general (power distribution systems, grounding grids, residential, building, industrial grounding, grounding in telecommunications networks).

Material: Bronze clamp, fittings in copper alloy or hot galvanized steel.

Application Tool: Spanner set or open-ended wrench.

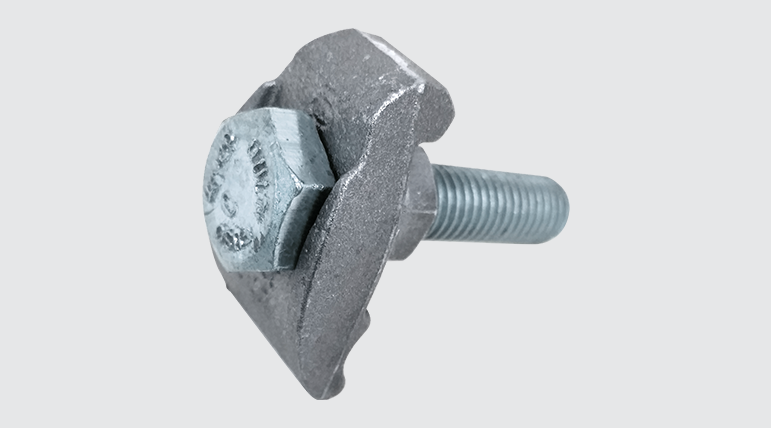

*Also available tin plated.

Technical Chart

Technical specifications of our products

INTELLI CodeConductorDatasheet
AWG/MCMmm131
GTSB-8-48 - 410 - 25View
GTSB-4-2/04 - 2/016 - 70View
GTSB-2/0-2502/0 - 25070 - 120View
GTSB-300-500300 - 500150 - 240View
