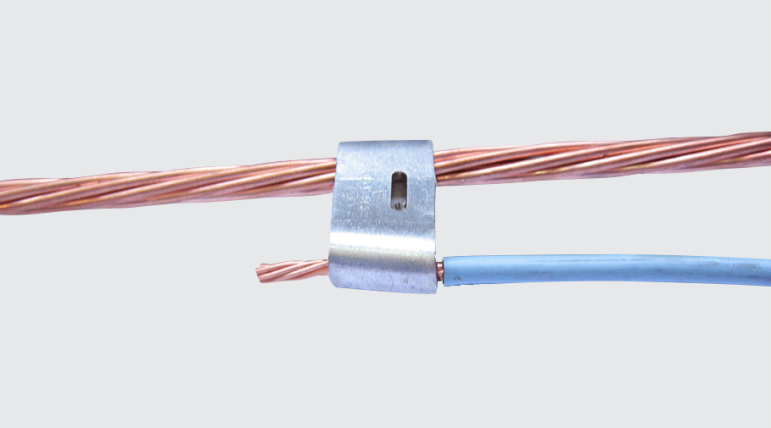

CDC Asymmetric - Wedge Connector

Purpose: Copper or aluminum CA and CAA cable tap. Suitable for copper-copper, copper-aluminum and aluminum-copper connections.

Characteristics: Spring system connection (permanent tightening). High electrical conductivity and corrosion resistance.

Application: Power distribution lines.

Material: Copper alloy. Supplied with antioxide compound INTELTROX.

Finish: Tin plated. Application Tool: 12” water pump plier.

Technical specifications of our products

INTELLI Code	Type	Reference Color	Selection per Diameter						Datasheet
			Run (mm)		Tap (mm)		Sum of Conductors (mm)
			Min.	Max.	Min.	Max.	Min.	Max.
CDC-A-Vi	A	VIOLETA	5,60	9,36	1,74	5,10	9,10	10,95	View
CDC-B-La	B	LARANJA	6,20	9,36	1,74	5,10	10,95	13,11	View
CDC-C-Ma	C	MARROM	8,20	12,74	1,74	5,10	13,11	14,75	View
CDC-D-Br	D	BRANCO	9,50	12,74	1,74	5,10	14,75	17,0	View
CDC-F-VdAz	F	VERDE / AZUL	5,60	8,33	1,74	5,10	7,20	9,10	View
CDC-G-ViAz	G	VIOLETA / AZUL	5,60	8,33	1,36	1,73	7,20	9,10	View
CDC-H-LaAz	H	LARANJA / AZUL	5,60	9,36	1,36	1,73	9,10	10,95	View
CDC-J-MaAz	J	MARROM / AZUL	9,34	11,10	1,74	5,10	10,95	13,11	View
CDC-K-BrAz	K	BRANCO / AZUL	9,34	11,10	1,36	1,73	10,95	13,11	View
CDC-L-CiAz	L	CINZA / AZUL	12,50	14,60	2,25	5,10	16,43	19,45	View
