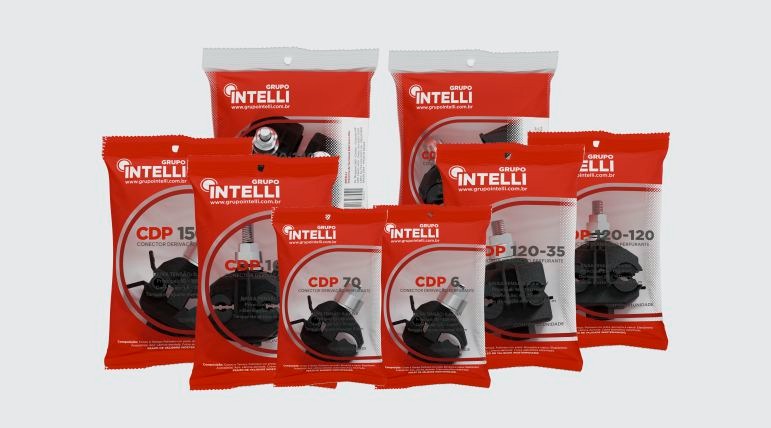

CDP - Piercing Connector
Purpose: Tap of Insulated Cables, suitable for combinations aluminum to aluminum, aluminum to copper and copper to copper in overhead power distribution lines (low voltage up to 1kV).
Characteristics: Insulation piercing connection (no stripping of cable insulation required). Used with 0.6/1kV XLPE/PE insulated aluminum cables or 450/750v PVC insulated cables (without cover). It has a fuse nut to ensure a perfect connection. It has elastomeric rubbers, making the connector watertight.
Application: Overhead insulated power distribution lines.
Material: Polymer connector resistant to weather and U.V. rays. Tin plated copper contacts.
Application Tool: Star or socket wrench.
Technical Chart
Technical specifications of our products
| INTELLI Code | Conductors | Datasheet | |||
|---|---|---|---|---|---|
| Run | Tap | ||||
| mm² | AWG/MCM | mm² | AWG/MCM | ||
| CDP-6 | 10 - 120 | 8 - 4/0 | 1,5 - 6 | 16 - 10 | View |
| CDP-70 | 10 - 95 | 8 - 3/0 | 1,5 - 10 | 16 - 8 | View |
| CDP-150-10 | 10 - 185 | 8 - 336,4 | 1,5 - 10 | 16 - 8 | View |
| CDP-16-120 | 16 - 120 | 6 - 4/0 | 16 - 120 | 6 - 4/0 | View |
| CDP-150-35 | 10 - 150 | 8 - 300 | 4 - 35 | 12 - 2 | View |
| CDP-120-120 | 25 - 150 | 4 - 300 | 25 - 150 | 4 - 300 | View |
| CDP-240-240 | 70 - 240 | 2/0 - 477 | 70 - 240 | 2/0 - 477 | View |
| CDP-240-240S | 50 - 240 | 1/0 - 477 | 50 - 240 | 1/0 - 477 | View |
