ICAL-CAA/RA - Condutores de Alumínio com Alma de Aço Revestido de Alumínio

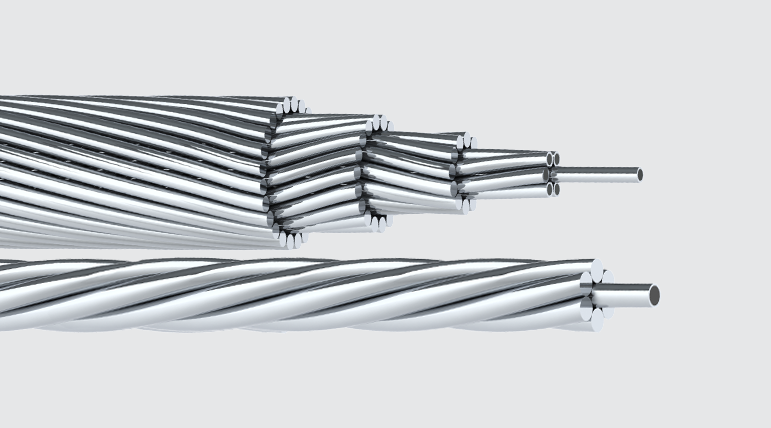

Indicados para a transmissão de energia em linhas aéreas urbanas e rurais, o cabo de alumínio CAA/RA é um condutor de alumínio liga 1350 (têmpera H19) encordoado (classe AA), concêntrico com alma de aço revestido de alumínio - ALUMOSTEEL, o que garante maior desempenho mecânico se comparado aos cabos de alumínio nu e maior resistência à corrosão se comparados à cabos com alma de aço zincado.
Normas: ABNT NBR-10841: Cabos de alumínio reforçados por fios de aço revestidos de alumínio para linhas aéreas - Especificação.
Tabela Técnica
Especificações técnicas dos nossos produtos
| Código INTELLI | Código Internacional | Seção (AWG/MCM) | Área | Formação | Diâmetro Nominal do Cabo (mm) | Ficha técnica | |||
|---|---|---|---|---|---|---|---|---|---|
| Al (mm²) | Aço (mm²) | Total (mm²) | Al (fios/Ømm) | Aço (fios/Ømm) | |||||
| ICAL-80-GROUSE | Grouse | 80 | 40,540 | 14,120 | 54,660 | 8 / 2,54 | 1 / 4,24 | 9,32 | Visualizar |
| ICAL-101,8-CAA/RA-PETREL | Petrel | 101,8 | 51,610 | 30,100 | 81,710 | 12 / 2,34 | 7 / 2,34 | 11,70 | Visualizar |
| ICAL-110,8-MINORCA | Minorca | 110,8 | 56,110 | 32,730 | 88,840 | 12 / 2,44 | 7 / 2,44 | 12,20 | Visualizar |
| ICAL-134,6-CAA/RA-LEGHORN | Leghorn | 134,6 | 68,200 | 39,780 | 107,980 | 12 / 2,69 | 7 / 2,69 | 13,45 | Visualizar |
| ICAL-159,0-GUINEA | Guinea | 159 | 80,360 | 46,880 | 127,240 | 12 / 2,92 | 7 / 2,92 | 14,60 | Visualizar |
| ICAL-176,9-CAA/RA-DOTTOREL | Dottorel | 176,9 | 89,410 | 52,150 | 141,560 | 12 x 3,08 | 7 x 3,08 | 15,40 | Visualizar |
| ICAL-190,8-DORKING | Dorking | 190,8 | 96,510 | 56,300 | 152,810 | 12 / 3,20 | 7 / 3,20 | 16,00 | Visualizar |
| ICAL-203,2-BRAHMA | Brahma | 203,2 | 102,960 | 91,780 | 194,740 | 16 / 2,86 | 19 / 2,48 | 18,12 | Visualizar |
| ICAL-211,3-COCHIN | Cochin | 211,3 | 107,060 | 62,440 | 169,500 | 12 / 3,37 | 7 / 3,37 | 16,85 | Visualizar |
| ICAL-4-/CAA/RA-SWAN | Swan | 4 | 21,180 | 3,530 | 24,710 | 6 x 2,12 | 1 x 2,12 | 6,36 | Visualizar |
| ICAL-2-CAA/RA-SPARROW | Sparrow | 2 | 33,590 | 5,600 | 39,190 | 6 x 2,67 | 1 x 2,67 | 8,01 | Visualizar |
| ICAL-1-CAA/RA-ROBIN | Robin | 1 | 42,410 | 7,070 | 49,480 | 6 x 3,00 | 1 x 3,00 | 9,00 | Visualizar |
| ICAL-1/0-CAA/RA-RAVEN | Raven | 1/0 | 53,520 | 8,920 | 62,440 | 6 x 3,37 | 1 x 3,37 | 10,11 | Visualizar |
| ICAL-2/0-CAA/RA-QUAIL | Quail | 2/0 | 67,330 | 11,220 | 78,550 | 6 x 3,78 | 1 x 3,78 | 11,34 | Visualizar |
| ICAL-3/0-CAA/RA-PIGEON | Pigeon | 3/0 | 85,120 | 14,190 | 99,310 | 6 x 4,25 | 1 x 4,25 | 12,75 | Visualizar |
| ICAL-4/0-CAA/RA-PENGUIN | Penguin | 4/0 | 107,220 | 17,870 | 125,090 | 6 x 4,77 | 1 x 4,77 | 14,31 | Visualizar |
| ICAL-266,8-WAXWING | Waxwing | 266,8 | 134,980 | 7,500 | 142,480 | 18 x 3,09 | 1 x 3,09 | 15,45 | Visualizar |
| ICAL-266-8-PARTRIDGE | Partridge | 266,8 | 134,870 | 21,990 | 156,860 | 26 x 2,57 | 7 x 2,00 | 16,28 | Visualizar |
| ICAL-300,0-OSTRICH | Ostrich | 300,0 | 152,190 | 24,710 | 176,900 | 26 x 2,73 | 7 x 2,12 | 17,28 | Visualizar |
| ICAL-336,4-CAA/RA-MERLIN | Merlin | 336,4 | 170,220 | 9,460 | 179,680 | 18 x 3,47 | 1 x 3,47 | 17,35 | Visualizar |
| ICAL-336,4-CAA/RA-LINNET | Linnet | 336,4 | 170,550 | 27,830 | 198,380 | 26 x 2,89 | 7 x 2,25 | 18,31 | Visualizar |
| ICAL-336,4-CAA/RA-ORIOLE | Oriole | 336,4 | 170,500 | 39,780 | 210,280 | 30 x 2,69 | 7 x 2,69 | 18,83 | Visualizar |
| ICAL-397,5-CHICKADEE | Chickadee | 397,5 | 200,900 | 11,200 | 212,100 | 18 x 3,77 | 1 x 3,77 | 18,85 | Visualizar |
| ICAL-397,5-BRANT | Brant | 397,5 | 201,600 | 26,100 | 227,700 | 24 x 3,27 | 7 x 2,18 | 19,61 | Visualizar |
| ICAL-397,5-CAA/RA-IBIS | Ibis | 397,5 | 201,340 | 32,730 | 234,070 | 26 x 3,14 | 7 x 2,44 | 19,88 | Visualizar |
| ICAL-397,5-CAA/RA-LARK | Lark | 397,5 | 200,900 | 46,880 | 247,780 | 30 x 2,92 | 7 x 2,92 | 20,44 | Visualizar |
| ICAL-477,0-PELICAN | Pelican | 477 | 242,300 | 13,500 | 255,800 | 18 x 4,14 | 1 x 4,14 | 20,70 | Visualizar |
| ICAL-477,0-FLICKER | Flicker | 477 | 241,600 | 31,400 | 273,000 | 24 x 3,58 | 7 x 2,39 | 21,49 | Visualizar |
| ICAL-477,0-CAA/RA-HAWK | Hawk | 477 | 241,650 | 39,490 | 281,140 | 26 x 3,44 | 7 x 2,68 | 21,80 | Visualizar |
| ICAL-477,0-CAA/RA-HEN | Hen | 477 | 241,270 | 56,300 | 297,570 | 30 x 3,20 | 7 x 3,20 | 22,40 | Visualizar |
| ICAL-556,5-OSPREY | Osprey | 556,5 | 282,500 | 15,700 | 298,200 | 18 x 4,47 | 1 x 4,47 | 22,35 | Visualizar |
| ICAL-556,5-PARAKEET | Parakeet | 556,5 | 282,300 | 36,600 | 318,900 | 24 x 3,87 | 7 x 2,58 | 23,22 | Visualizar |
| ICAL-556,5-CAA/RA-DOVE | Dove | 556,5 | 282,590 | 45,920 | 328,510 | 26 x 3,72 | 7 x 2,89 | 23,55 | Visualizar |
| ICAL-556,5-EAGLE | Eagle | 556,5 | 282,100 | 65,800 | 347,900 | 30 x 3,46 | 7 x 3,46 | 24,21 | Visualizar |
| ICAL-605,0-PEACOCK | Peacock | 605 | 306,100 | 39,800 | 345,900 | 24 x 4,03 | 7 x 2,69 | 24,21 | Visualizar |
| ICAL-605,0-CAA/RA-SQUAB | Squab | 605 | 305,800 | 49,800 | 355,600 | 26 x 3,87 | 7 x 3,01 | 24,54 | Visualizar |
| ICAL-605,0-WOOD DUCK | Wood Duck | 605 | 307,060 | 71,650 | 378,710 | 30 x 3,61 | 7 x 3,61 | 25,25 | Visualizar |
| ICAL-605,0-TEAL | Teal | 605 | 306,060 | 69,620 | 375,680 | 30 x 3,61 | 19 x 2,16 | 25,25 | Visualizar |
| ICAL-636,0-KINGBIRD | Kingbird | 636 | 323,000 | 17,900 | 340,900 | 18 X 4,78 | 1 X 4,78 | 23,90 | Visualizar |
| ICAL-636,0-ROOK | Rook | 636 | 323,100 | 41,900 | 365,000 | 24 x 4,14 | 7 x 2,76 | 24,82 | Visualizar |
| ICAL-636,0-GROSBEAK | Grosbeak | 636 | 321,840 | 52,490 | 374,330 | 26 x 3,97 | 7 x 3,09 | 25,15 | Visualizar |
| ICAL-636,0-SCOTER | Scoter | 636 | 322,220 | 75,260 | 397,480 | 30 x 3,70 | 7 x 3,70 | 25,88 | Visualizar |
| ICAL-636,0-EGRET | Egret | 636 | 322,220 | 73,540 | 395,760 | 30 x 3,70 | 19 x 2,22 | 25,88 | Visualizar |
| ICAL-666,6-FLAMINGO | Flamingo | 666,6 | 337,270 | 43,720 | 380,990 | 24 x 4,23 | 7 x 2,82 | 25,38 | Visualizar |
| ICAL-666,6-GANNET | Gannet | 666,6 | 338,260 | 54,900 | 393,160 | 26 x 4,07 | 7 x 3,16 | 25,76 | Visualizar |
| ICAL-7156,5-STILT | Stilt | 715,5 | 363,270 | 46,880 | 410,150 | 24 x 4,39 | 7 x 2,92 | 26,31 | Visualizar |
| IACL-715,5-STARLING | Starling | 715,5 | 361,930 | 59,150 | 421,080 | 26 x 4,21 | 7 x 3,28 | 26,68 | Visualizar |
| ICAL-715,5-REDWING | Redwing | 715,5 | 362,060 | 82,410 | 444,470 | 30 x 3,92 | 19 x 2,35 | 27,43 | Visualizar |
| ICAL-795,0-CAA/RA-TERN | Tern | 795 | 403,770 | 27,830 | 431,600 | 45 x 3,38 | 7 x 2,25 | 27,03 | Visualizar |
| ICAL-795,0-CAA/RA-CONDOR | Condor | 795 | 402,330 | 52,150 | 454,480 | 54 x 3,08 | 7 x 3,08 | 27,74 | Visualizar |
| ICAL-795,0-CUCKOO | Cuckoo | 795 | 402,300 | 52,200 | 454,500 | 24 x 4,62 | 7 x 3,08 | 27,74 | Visualizar |
| ICAL-795-CAA/RA-DRAKE | Drake | 795 | 402,840 | 65,510 | 468,350 | 26 x 4,44 | 7 x 3,45 | 28,11 | Visualizar |
| ICAL-795,0-MALLARD | Mallard | 795 | 403,840 | 91,780 | 495,620 | 30 x 4,14 | 19 x 2,48 | 28,96 | Visualizar |
| ICAL-900,0-CAA/RA-RUDDY | Ruddy | 900 | 455,500 | 31,670 | 487,170 | 45 x 3,59 | 7 x 2,40 | 28,74 | Visualizar |
| ICAL-900,0-CANARY | Canary | 900 | 456,060 | 59,100 | 515,160 | 54 x 3,28 | 7 x 3,28 | 29,51 | Visualizar |
| ICAL-954,0-CAA/RA-RAIL | Rail | 954 | 483,840 | 33,540 | 517,380 | 45 x 3,70 | 7 x 2,47 | 29,61 | Visualizar |
| ICAL-954,0-CAA/RA-CARDINAL | Cardinal | 954 | 484,530 | 62,810 | 547,340 | 54 x 3,38 | 7 x 3,38 | 30,42 | Visualizar |
| ICAL-1033,5-ORTOLAN | Ortolan | 1033,5 | 523,900 | 36,310 | 560,210 | 45 x 3,85 | 7 x 2,57 | 30,78 | Visualizar |
| ICAL-1033,5-CURLEW | Curlew | 1033,5 | 522,510 | 67,730 | 590,240 | 54 x 3,51 | 7 x 3,51 | 31,59 | Visualizar |
| ICAL-1113,0-BLUEJAY | Bluejay | 1113 | 565,490 | 38,900 | 604,390 | 45 x 4,00 | 7 x 2,66 | 31,98 | Visualizar |
| ICAL-1113,0-FINCH | Finch | 1113 | 565,030 | 71,570 | 636,600 | 54 x 3,65 | 19 x 2,19 | 32,84 | Visualizar |
| ICAL-1192,5-BUNTING | Bunting | 1192,5 | 605,760 | 41,880 | 647,640 | 45 x 4,14 | 7 x 2,76 | 33,07 | Visualizar |
| ICAL-1192,5-CAA/RA-GRACKLE | Grackle | 1192,5 | 602,790 | 76,890 | 679,680 | 54 x 3,77 | 19 x 2,27 | 33,99 | Visualizar |
| ICAL-1272,0-BITTERN | Bittern | 1272 | 644,400 | 44,660 | 689,060 | 45 x 4,27 | 7 x 2,85 | 34,17 | Visualizar |
| ICAL-1272,0-PHEASANT | Pheasant | 1272 | 645,080 | 81,650 | 726,730 | 54 x 3,90 | 19 x 2,34 | 35,10 | Visualizar |
| ICAL-1351,5-DIPPER | Dipper | 1351,5 | 684,240 | 47,200 | 731,440 | 45 x 4,40 | 7 x 2,93 | 35,20 | Visualizar |
| ICAL-1351,5-MARTIN | Martin | 1351,5 | 685,390 | 86,670 | 772,060 | 54 x 4,02 | 19 x 2,41 | 36,17 | Visualizar |
| ICAL-1431,0-BOBOLINK | Bobolink | 1431 | 725,270 | 50,140 | 775,410 | 45 x 4,53 | 7 x 3,02 | 36,24 | Visualizar |
| ICAL-1431,0-PLOVER | Plover | 1431 | 726,920 | 91,780 | 818,700 | 54 x 4,14 | 19 x 2,48 | 37,21 | Visualizar |
| ICAL-1510,5-NUTHATCH | Nuthatch | 1510,5 | 764,200 | 52,900 | 817,100 | 45 x 4,65 | 7 x 3,10 | 37,24 | Visualizar |
| ICAL-1510,5-PARROT | Parrot | 1510,5 | 766,060 | 97,030 | 863,090 | 54 x 4,25 | 19 x 2,55 | 38,23 | Visualizar |
| ICAL-1590,0-CAA/RA-LAPWING | Lapwing | 1590 | 807,530 | 55,600 | 863,130 | 45 x 4,78 | 7 x 3,18 | 38,22 | Visualizar |
| ICAL-1590-0-CAA/RA-FALCON | Falcon | 1590 | 806,230 | 102,430 | 908,660 | 54 x 4,36 | 19 x 2,62 | 39,26 | Visualizar |
